Post of My Autodesk ALIAS

 Learning Autodesk Alias

The things I show are all part of my beginner learning process

1. Text in Alias

2. Spring

3. Rail Surfaces

4. Bi-rail using spine and rebuild

5. Tube flange



6. Making corner surfaces using surface fillets and square



7. Multi-surface draft

8. Mono-rail with CV Massaging

9. Trying Ball Corner

10. Creating rapid prototyping and Mesh file

11. Revising the close function of object edit, with and without preserve shape

12. Text on the surface

By using curves on the surface through intersections and trimming

13. Learning Aligning Surface

Aligning Edge G0, G1, G2 position-tangent-curvature

14. Learning Aligning Surface—

Projecting the surface on the surface and creating a shape

15. The Red and Blue Chair

Designed by architect Gerrit Rietveld in 1917. Created in Alias

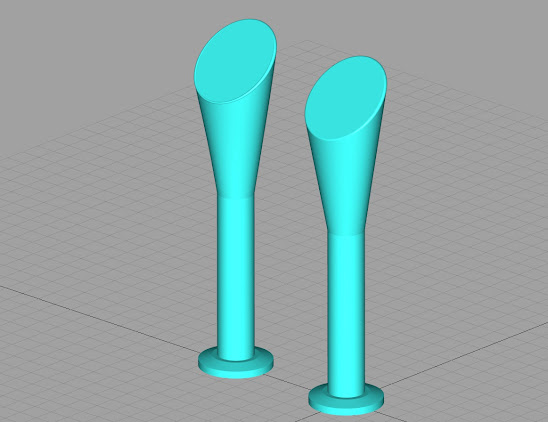

16. Cylinder designs

17. Assignment of turning a 2D sketch into a 3d model

 With the help of Autodesk Alias and rendering it in Blender with the help of a designer friend, Rithvik (https://www.instagram.com/rithvik.creations/)

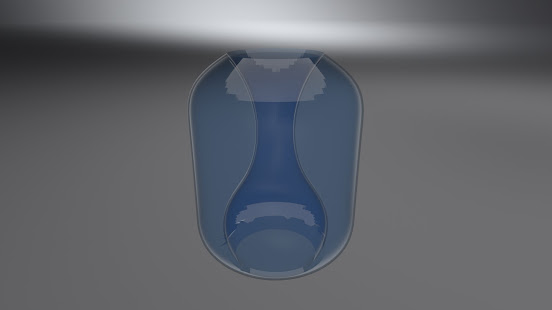

17a. Renders in Vred

17b. Renders in Blender by my designer friend. Send him a prototype from Alias
